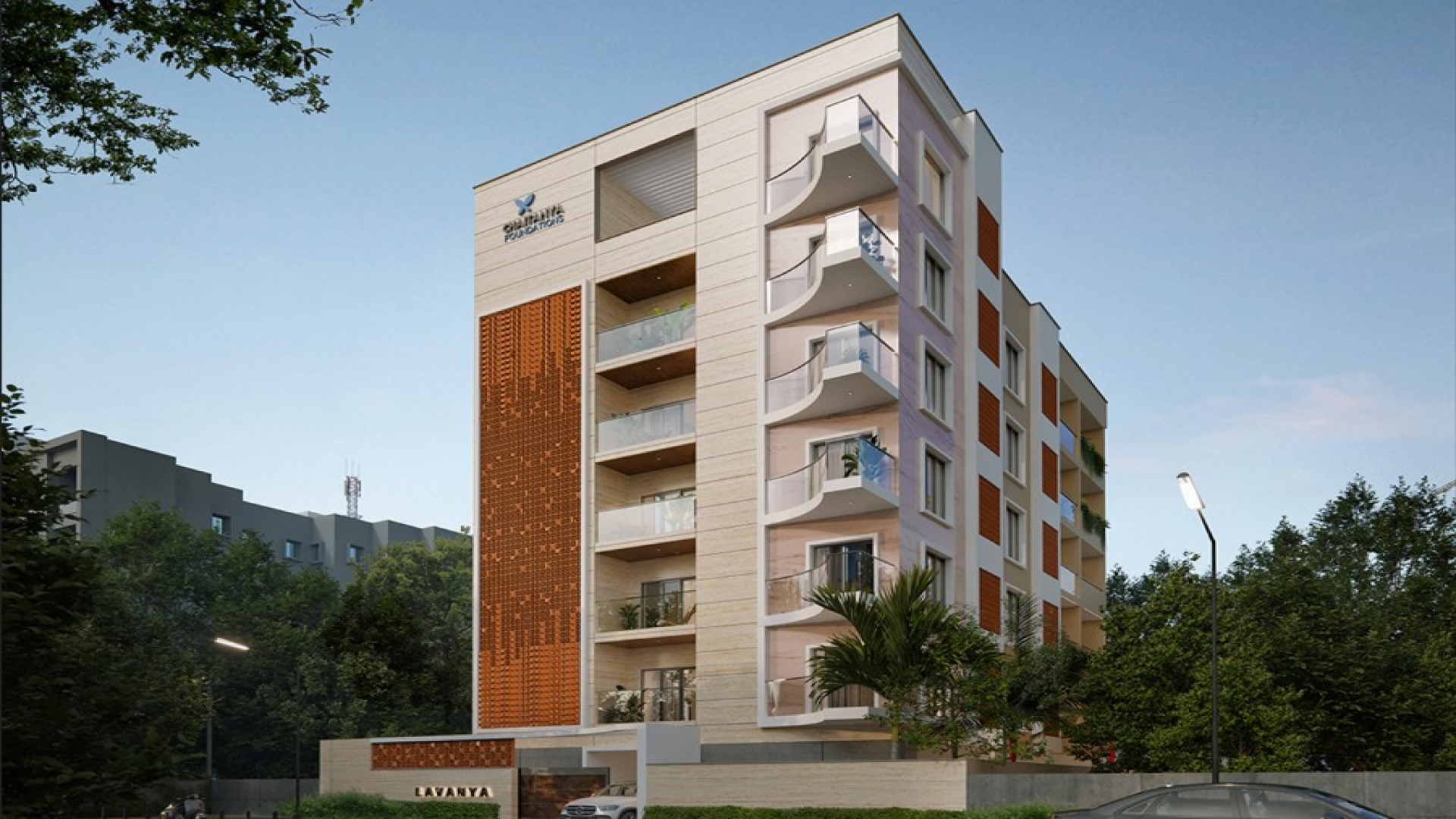

Chaitanya Lavanya

Structure

Seismic zone III compliant RCC frame structure.

Solid concrete block masonry.

Flooring and Tiles

4’*2’ vitrified tiles with coordinated skirting.

2’*2’ vitrified tiles with coordinated skirting.

2’*2’ vitrified tiles with coordinated skirting.

1’*2? backsplash glazed tiles up to 2? above counter.

2’*2’ vitrified tiles with coordinated skirting.

1’*2’ non-skid tiles with suitable dado up to 3? height in wet area.

1’*2’ vitrified non-skid tiles with dado up to 7’6? height.

All-weather proof tiles.

Kitchen and Utility

Polished black granite platform with double nose edge at ergonomic 32” from the floor, over RCC counter supported by suitable brickwork.

Stainless steel single bowl sink and draining board in kitchen, of Nirali or equivalent make Provision for exhaust.

Doors, windows and Railings

7’6?*3’6?. Teak wood door shutter with suitable frame.

7’6?. Factory finished 32 mm thick Veneer door shutter along with suitable frame.

Yale brand Locks with Stainless Steel fittings. For Toilet Doors – One side Veneer and other side – Painted or laminated.

Fenesta UPVC sliding, clear glass frames & bug screens with Saint Gobain Glass.

UPVC Window / French Door frames and profiles. Sliding door with Saint- Gobain glass or equivalent.

Grills MS Grills fixed on to the walls. Zinc Chromate Anti-corrosive primer with Enamel Paint.

Sanitaryware and plumbing

KohIer/Roca or equivalent.

CP Fittings Kohler/Roca or equivalent.

Surface Finishes

Finished with Asian putty; emulsion (Asian Paints) roller finish.

Finished with Asian putty; emulsion (Asian Paints) roller finish.

Weatherproof exterior emulsion.

Electrical Distribution and Wiring

TV, telephone and modem points in all bedrooms and living room.

Electrical distribution & concealed wiring suitable for 3-phase power supply.

Fire-resistant electrical wires of Finolex or Anchor make.

Switches and sockets of Scheneider/Legrand or equivalent make.

Air-conditioning points in all rooms.

One MCB for each room in the main distribution box in each residence.

Three phase power supply.

All products like switches and accessories, PVC conduits, switchgear, wiring cable etc. are compliant with IS code of Practice for electrical wiring.

Common areas

Ground floor lobby.

Polished granite combination design flooring with matched skirting.

Upper Floor Lobbies.

Polished granite slab with matched skirting.

Stone cladding around elevator.

Staircases.

Granite flooring with skirting.

Handrails with MS grill work.

External areas

Paving with granolithic flooring/concrete interlock pavers.

Drains along the compound wall to divert rain water to rain harvesting pit.

As per the Architect’s detailing.

One 8-passenger capacity Johnson elevator which goes up to the terrace.

Generator of the required rating to cater to lights, fan points in all rooms, calling bell, refrigerator point, four ACs in each apartment, and for adequate lighting in the common area, and to operate motor pump and elevator.

Access control lobby doors.

CCTV cameras in common areas.

Video door bell.

More utilities on Campus

Rainwater harvesting system.

OH tank with float switch.

Pressure pump.

Toilet for drivers/staff in stilt floor and for residents in the terrace.

Solar cells as per CMDA norms.

EV charging points on the stilt floor.
