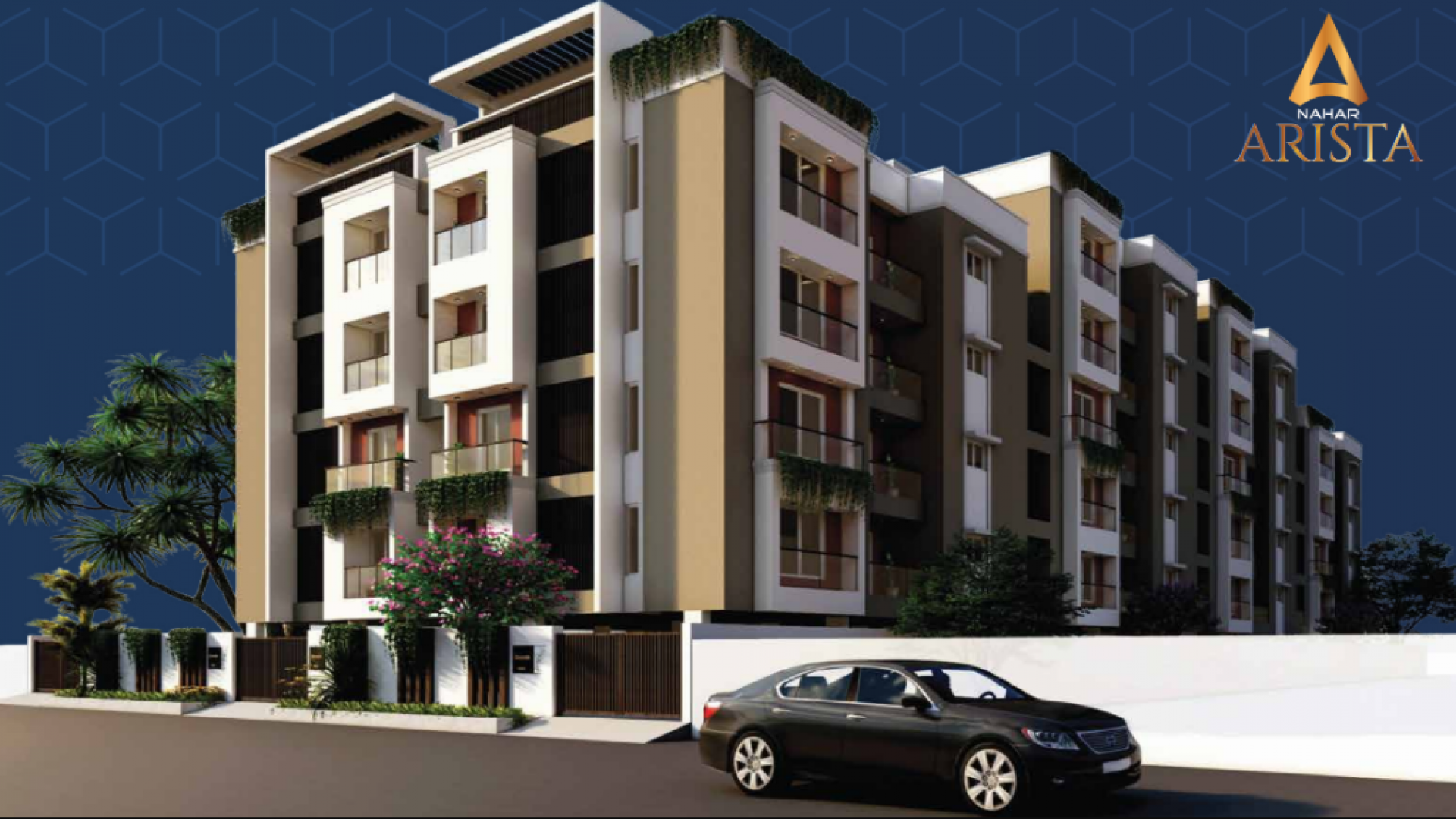

Nahar Arista

Type of Construction

Framed structure with RCC columns & beams (as per soil report) over masonry clay wire cut brick walls of 9 inches and 4.5 inches walls plastered and paint finished.

Ceiling height will be 9'-6" feet approximately except in the toilet where it will be 8'-6".

Flooring

Living, dining and bedroom area will be finished with 4’ * 2’ vitrified tiles with 4” matching skirting tiles as per design.

Toilets will be finished with antiskid ceramic flooring and glazed wall tiles up to 7 feet height.

Balconies will be finished with matt finished 1’ * 1’ anitskid tiles.

Plumbing and Sanitary

Concealed CPVC/ Open UPVC plumbing lines from the overhead tank.

All closets and washbasins (white colour).

Provision in plumbing for connecting one geyser in each toilet.

Hot and cold wall mixer for shower area.

All C.P. fittings.

Doors

Main doorframe will be of teak and door shutter will be of teak skin, finished with lacquer varnish.

Other doors will be wood frames and flush doors laminated on both sides.

All door fittings will be of aluminium excepting the front main door, which will have brass fittings.

Main door will be provided with Mortise lock, door eye & door stopper.

Doors to the bedrooms will be provided with cylindrical locks.

Door and frame will not be provided for the kitchen.

Windows and Ventilators

Windows will be of UPVC quality (sliding shutters) with 4 mm clear glass panels will be provided.

Ventilators will be of UPVC quality.

Grill will not be provided.

Kitchen

Kitchen platform will be polished granite with a single bowl stainless steel sink and glazed tiles dado of 2’0” feet above the kitchen platform, 3’0” feet dado in utility area (if provided).

Loft

One in the kitchen only.

Painting

Acrylic putti will be applied on the ceiling and the walls of flats to have smooth surface and finally finished with one coat of acrylic primer.

All wooden frames and shutters will be finished with enamel paint.

Building exterior including balconies will be finished with cement plaster & exterior emulsion paint.

The staircase area will be finished with cement plaster & acrylic emulsion.

Electrical

Concealed copper wiring suitable for three-phase supply, will be of ISI quality.

Switches & sockets with adequate points for light, fan and power supply.

Separate meter for lighting in common areas and the pumps.

Three phase electricity supply for each flat.

One calling bell point.

Provision for Split Air Conditioner in all bedrooms.

Water Supply

One common bore well and one sump.

One submersible pump for sump and one jet motor for bore.

General

Anti-termite treatment at the foundation stage – ground floor only.

Aqua guard point in kitchen.

Automatic water level controller for pumps.

Concealed PVC pipes for TV antenna in the living room.

A common junction near the entrance to the building for incoming telephone line, with provision for concealed wiring from this board to points in each flat in the living room.

Rainwater harvesting.
