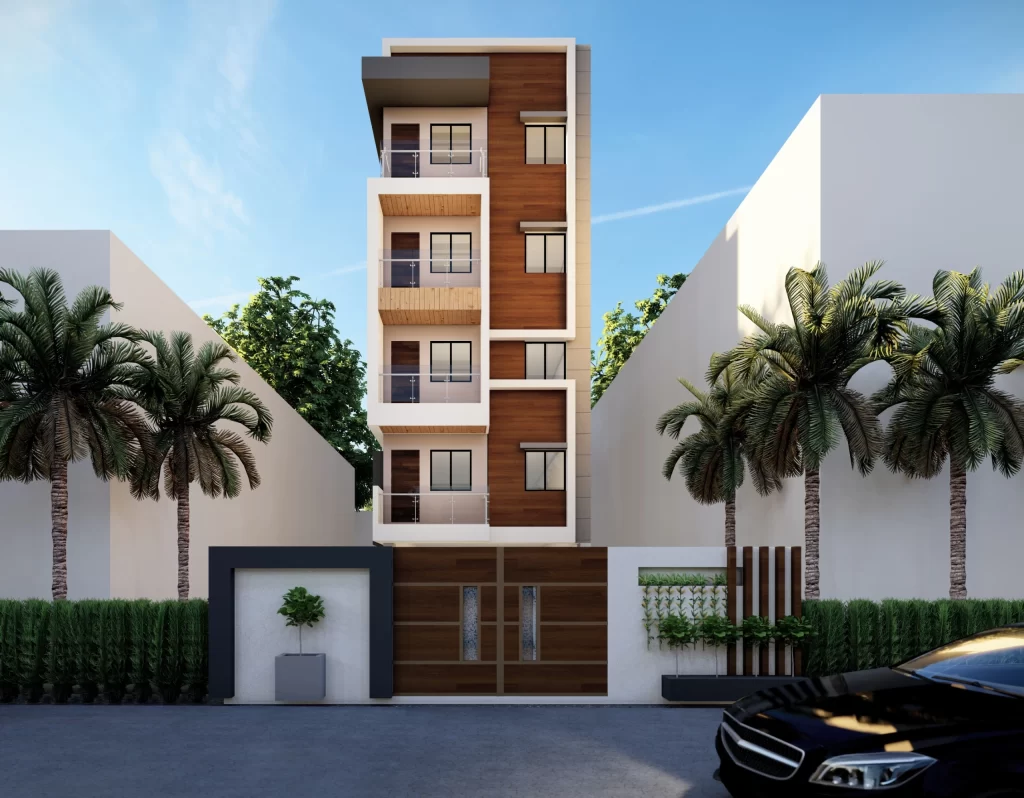

Nahar East

Type of Construction

Framed structure with RCC columns & beams (as per soil report) over masonry clay wire cut brick walls of 9 inches and 4.5 inches walls plastered and paint finished.

Ceiling height will be 9-6 feet approximately except in the toilet where it will be 8-6.

Flooring

The living, dining, and bedroom areas will be finished with good quality 4’ * 2’ vitrified tiles with 4” matching skirting tiles as per design & builder’s choice.

Toilets will be finished with good quality antiskid ceramic flooring and glazed wall tiles up to 7 feet in height as per the builder’s choice.

Balconies will be finished with good quality matt finished 1’ * 1’ anitskid tiles as per builder’s choice.

Plumbing and Sanitary

Concealed CPVC/ Open UPVC plumbing lines from the overhead tank will be provided.

All closets and washbasins (white color) will be provided.

Provision in plumbing for connecting one geyser in each toilet.

Hot and cold wall mixers will be provided for the shower area.

All C.P. fittings will be provided.

Doors

The main doorframe will be of teak and the door shutter will be of good quality imported skin, finished with lacquer varnish.

Other doors will be with good quality wood frames and flush doors laminated on both sides.

All door fittings will be of aluminum except the front main door, which will have brass fittings.

The main door will be provided with a Mortise lock, door eye, tower bolt & door stopper.

Doors to the bedrooms will be provided with cylindrical locks.

A door and frame will not be provided for the kitchen.

Windows and Ventilators

Steel grills (painted) will be provided in all windows only.

Windows will be of UPVC (sliding shutters) quality with 4 mm clear glass panels will be provided.

Ventilators will be of UPVC quality & Grill will not be provided.

Kitchen

The kitchen platform will be polished granite with a single bowl stainless steel sink and glazed tiles dado of 2’0” feet above the kitchen platform, and 3’0” feet dado in the utility area (if provided).

One loft will be provided in the kitchen.

Painting

Acrylic putti will be applied on the ceiling and the walls of the flats to have a smooth surface and finally finished with one coat of acrylic primer.

All wooden frames and shutters will be finished with enamel paint.

Building exterior including balconies will be finished with cement plaster & waterproof paint as per the builder’s choice.

The staircase area will be finished with cement plaster & acrylic emulsion as per the builder’s choice.

Electrical

Concealed copper wiring suitable for three-phase supply, will be of ISI quality.

Switches & sockets with adequate points for light, fan, and power supply will be provided.

Separate meter for lighting in common areas and the pumps.

Three phases of electric supply will be provided for each flat.

One calling bell point will be provided.

Provision for Split Air Conditioner in all bedrooms.

Water Supply

One common bore well and one sump will be provided.

One submersible pump for the sump and one jet motor for the bore will be provided.

General

Anti-termite treatment.

Aqua guard point in the kitchen.

An automatic water level controller for pumps will be provided.

One individual letterbox will be provided at the entrance to the building.

Concealed PVC pipes for the TV antenna will be provided in the living room.

A common junction will be provided near the entrance to the building for incoming telephone lines, with provision for concealed wiring from this board to points in each flat in the living room.

Rainwater harvesting.
